General-Purpose 3-1/2 Digit Panel Meter PCB pattern [04110921]

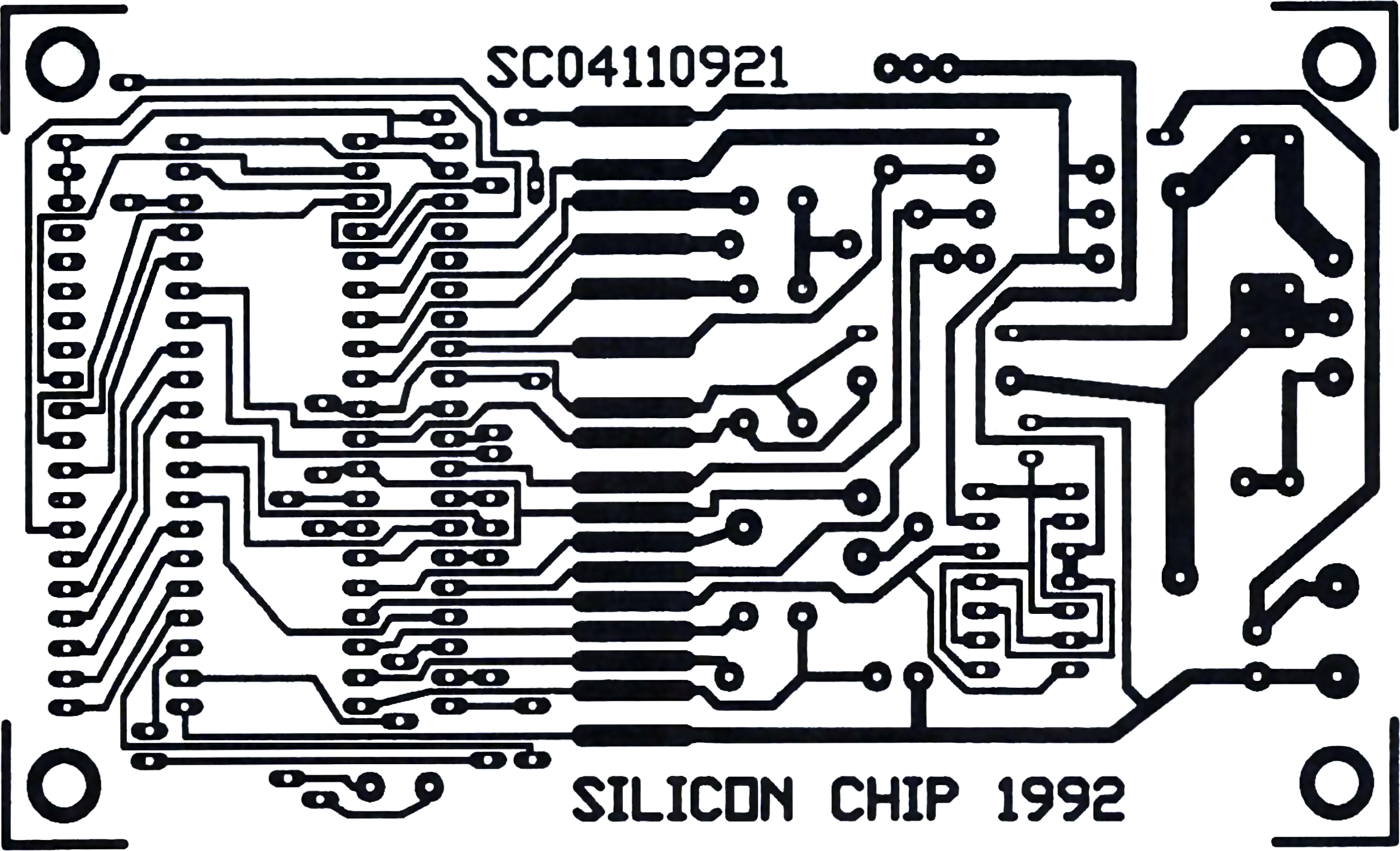

A PNG image with the PCB design for the General Purpose 3 1/2 Digit Panel Meter (single-sided).
This has been scanned from page 85 of the September 1992 issue and cleaned up, so it might not be perfect.
|
