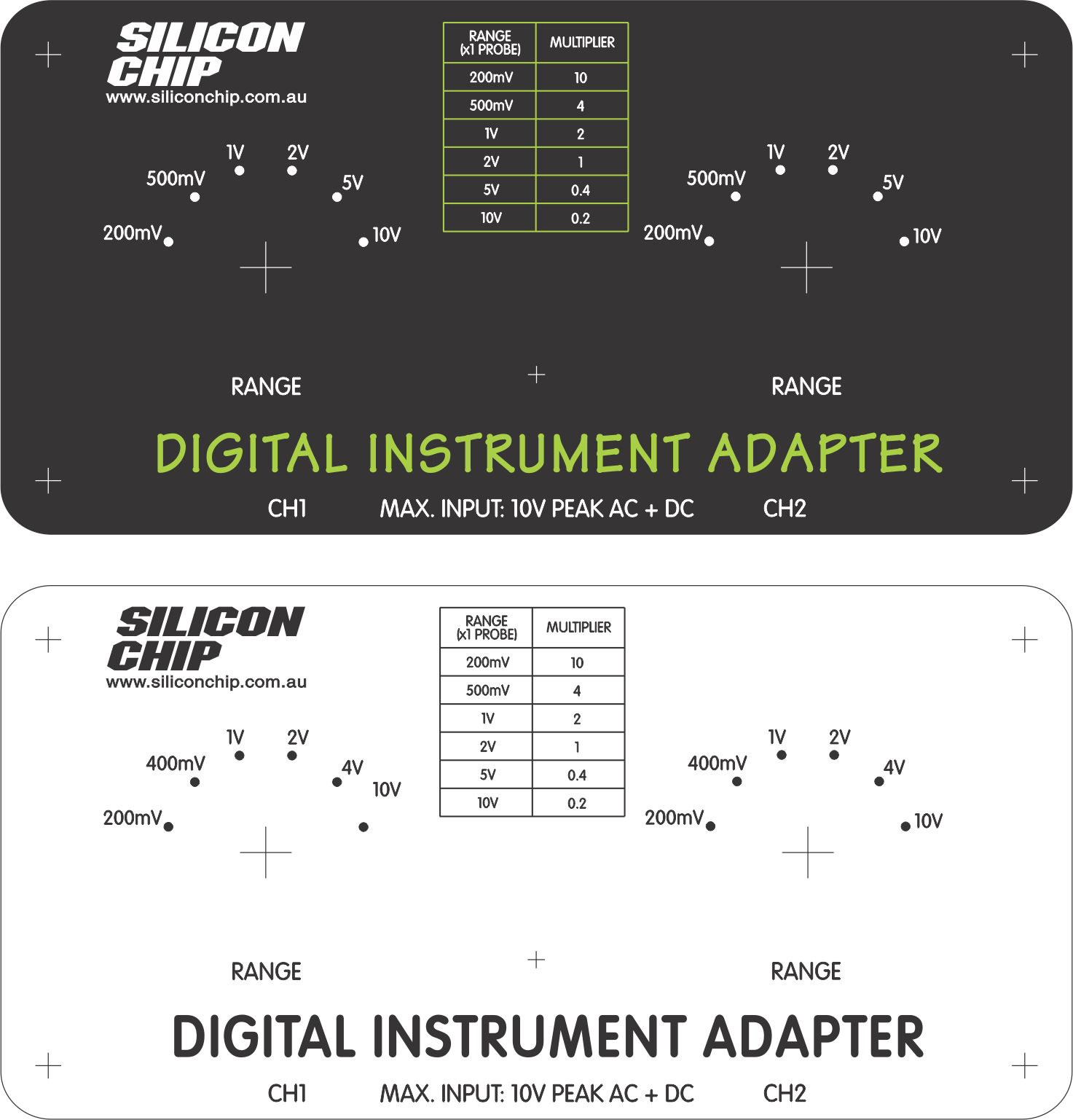

Panel artwork for the Sound Card Interface For PC Test Instruments (PDF download) Front panel artwork for the PC Test Instrument Sound Card Adaptor. We're supplying a PNG file as well as the PDF in case you don't have the fonts to view/print the PDF properly. Cat No SC2041. Price: Free Files: PC Instrument Adapter front panel.pdf (389.6KB) PC Instrument Adapter front panel.png (225.1KB) Related to: Project: Sound Card Interface For PC Test Instruments (August 2002 [print issue] [online issue]) Other item relevant to this project: Sound Card Interface For PC Test Instruments PCB pattern (PDF download) [04108012] (Free) Add to trolley
