ESP-PSRAM64 64Mb (8MB) PSRAM chip (SOIC-8)
An eight megabyte pseudo static RAM (PSRAM) chip in an 8-pin SOIC SMD package.
|
|
DS3231MZ real-time clock IC (SOIC-8)
An accurate timekeeping chip with precision internal MEMS oscillator in a standard 8-pin SOIC SMD package.
|
 |
DS3231 real-time clock IC (SOIC-16)
An accurate timekeeping chip with precision internal crystal in a wide SOIC-16 SMD package.
|
 |
Dual Horizontal PCB-mounting RCA sockets (white/red) [RCA-210]
These RCA sockets are similar to the discontinued Altronics P0213 and suit the DAB+/FM/AM Radio PCB.
They have an RCA-210 footprint.
|
 |
AOT10N60 High-voltage Mosfet for the 230VAC Fan Speed Controllers
This Mosfet is suitable for use in the Deluxe 230VAC Fan Speed Controller and the Fan Speed Controller Mkt2. Its ratings are:
Maximum drain-source voltage: 700V
Maximum continuous drain current: 10A
Maximum on-resistance: <0.75Ω
Maximum power dissipation: 250W
Gate threshold voltage: 3.0-4.5V
|
 |
1.3-inch blue OLED with 4-pin I²C interface
128x64 pixel, 3cm OLED display to suit the June 2019 GPS Speedo/Clock/Volume Control project.
|
 |
1.3-inch white OLED with 4-pin I²C interface
128x64 pixel, 3cm OLED display to suit the June 2019 GPS Speedo/Clock/Volume Control project.
|
 |
16x2 Alphanumeric module with blue backlight
A small two-line 16-column alphanumeric LCD with blue LED back-lighting. This is a very common type of LCD used in a wide range of designs.
|
 |
Pulse-type rotary encoder with pushbutton and 18t spline shaft
A five-pin rotary encoder with two mounting tabs that has been confirmed as the pulse type. Suitable for use in several projects published in the magazine (see below).
|
 |
0.96in white OLED with SSD1306 controller
A 4-pin (I²C) OLED screen in white. The display active area is approximately 22 x 11mm while the whole module is about 27 x 19mm.
|
 |
3.5-inch TFT Touchscreen LCD module with SD card socket
A 3.5in 480x320 pixel colour touchscreen display module with an ILI9488-compatible controller, as used in the Micromite LCD BackPack V3 and described in the May 2019 issue.
Uses a 14-pin header for interfacing to the display and touch sensor, plus a 4 pin (unpopulated) header for the onboard SD card holder.
|
 |
3.2-inch TFT Touchscreen LCD module with SD card socket
A 3.2in 320x240 pixel colour touchscreen display module with an ILI9341-compatible controller, as used in the Pico Gamer.
It uses a 14-pin header for interfacing to the display and touch sensor, plus a 4 pin (unpopulated) header for the onboard SD card holder.
|
 |
CP2102-based USB/TTL serial converter with microUSB socket and 6-pin right-angle header
Note: that there is a separate CP2102 that comes with jumper cable, 5-pin header and a regular USB connector. This is used for other projects and the respective details can be found here: http://www.siliconchip.com.au/Shop/7/3437
A small USB/serial converter module with a microUSB connector - no cable included. Can be used to build the Touchscreen Appliance Energy Meter or to add a USB port to another project which uses an RS-232 TTL serial interface.
Modern operating systems like Windows 10 should not require any drivers to use this device - plug it in and it should be recognised and ready to use straight away.
We have only tested this adaptor in Windows; it should work with Linux and Mac OSX.
Please note: we have had reports that the 3.3V output is actually closer to 4.2V. You should check this voltage before connecting anything critical.
|
 |
PS/2 male-to-male cable (6-pin mini-DIN)
A 1m-long cable with a 6-pin mini-DIN plug at each end. This can be used to connect one of our USB to PS/2 Keyboard Adaptors to a computer's PS/2 input socket.
|
 |
0.96in cyan OLED with SSD1306 controller
A 4-pin (I²C) OLED screen in cyan. The display active area is approximately 22 x 11mm while the whole module is about 27 x 19mm.
|
 |
2.8-inch TFT Touchscreen LCD module with SD card socket
A touch screen display module as used in the Micromite LCD BackPack. Uses a 14-pin header for interfacing to the display (ILI9341 controller) and touch sensor, plus a 4 pin (unpopulated) header for the onboard SD card holder.
|
 |
MCP1700 3.3V LDO (TO-92)
A 3.3V low-dropout regulator in TO-92 package (MCP1700-3302E/TO).
|
 |
3-pin 5V step-up (boost) switch-mode regulator module
A small module that accepts a 0.9-5V DC input and produces a 5V DC output at up to 480mA.
It has the same footprint as many linear regulators and a three-pin right-angle header can be soldered to it (not included) to mount it in many locations that are designed for a linear regulator.
|
 |
3-pin 5V step-down (buck) regulator module
A small module that accepts a 6.5-40V DC input and produces a 5V DC output at up to 1A.
It has the same footprint as many linear regulators. A three-pin right-angle header comes pre-soldered on it, allowing you to mount it in many locations that are designed for a linear regulator.
|
|
INA282AIDR shunt monitor IC and 20mΩ 1W shunt resistor for 30V 2A Bench Supply
Two harder-to-get parts for the 30V 2A Bench Supply: the INA282 shunt monitor in an 8-pin SOIC package and the 20mΩ SMD shunt resistor.
The PCBs are available separately. All other parts are available from Jaycar, Altronics or the retailers listed in the parts list.
|
 |
Calibrated mic capsule set - Panasonic WM61A lot 4A14
A WM61A electric capsule microphone (ECM) as described in the August 2023 article on making a Calibrated Measurement Microphone.
Included with the capsule are the required SMD 100Ω resistor and 6.8nF capacitor to flatten out the frequency response.
Once we've sent the capsule, a download link will appear below this item so you can get the calibration files. The capsule will be numbered so you know which file to use.
|
|
Calibrated mic capsule set - JLI61A lot 3
A JLI61A electric capsule microphone (ECM) as described in the August 2023 article on making a Calibrated Measurement Microphone.
Included with the capsule are the required SMD 220Ω & 2.2kΩ resistors and 12nF & 15nF capacitors to flatten out the frequency response.
The 15nF capacitors are marked with an orange stripe.
Once we've sent the capsule, a download link will appear below this item so you can get the calibration files. The capsule will be numbered so you know which file to use.
|
|
Calibrated mic capsule set - JLI60A V02
A JLI60A electric capsule microphone (ECM) as described in the August 2023 article on making a Calibrated Measurement Microphone.
Included with the capsule are the required SMD 220Ω & 10kΩ resistors and 6.8nF & 12nF capacitors to flatten out the frequency response.
The 12nF capacitors are marked with an orange stripe.
Once we've sent the capsule, a download link will appear below this item so you can get the calibration files. The capsule will be numbered so you know which file to use.
|
|
Calibrated mic capsule set - CMC6027
A CMC6027 electric capsule microphone (ECM) as described in the August 2023 article on making a Calibrated Measurement Microphone.
Included with the capsule are the required SMD 220Ω & 3.9kΩ resistors and 18nF capacitors to flatten out the frequency response.
Once we've sent the capsule, a download link will appear below this item so you can get the calibration files. The capsule will be numbered so you know which file to use.
|
|
Calibrated mic capsule set - CMC2742
A CMC2742 electric capsule microphone (ECM) as described in the August 2023 article on making a Calibrated Measurement Microphone.
Included with the capsule are the required SMD 820Ω & 2.2kΩ resistors and 4.7nF & 8.2nF capacitors to flatten out the frequency response.
The 4.7nF capacitor is in clear tape while the 8.2nF is in paper tape.
Once we've sent the capsule, a download link will appear below this item so you can get the calibration files. The capsule will be numbered so you know which file to use.
|
 |
Pair of PCB-mounting right-angle banana sockets (red/black)
Two 4mm PCB-mount banana sockets, one red and one black.
These are similar to the now-discontinued Altronics P9200 & P9201, as used in the Wide-range Digital LC Meter and other projects.
|
 |
1nF ±1% polypropylene (MKP) or C0G/NP0 ceramic capacitor
A single 1nF through-hole capacitor with 1% tolerance and 5mm lead spacing.
TWO are required for the LC Meter projects.
|
 |
20x4 Alphanumeric serial (I²C) LCD module with blue backlight
A 20x4 alphanumeric LCD module with blue backlight, supplied with an I²C driver module which may already be soldered to the display. With it in place, you can update the characters on the display over an I²C bus.
For more details, see the El Cheapo Asian Electronic Modules article in the March 2017 issue.
|
 |
12V to 7.5V buck module (DD4012SA 7.5V)
A small buck converter module with a 3-pin SIL header that can convert 12V DC to 7.5V DC.
|
 |
Neo-7M GPS module with onboard SMA connector & 5-pin header
A Neo-7M GPS receiver with a 5-pin SIL header at one end and an SMA antenna connector on the other. There is no onboard antenna so you need to connect an external antenna.
The Neo-7M supports GPS, GLONASS, Galileo and QZSS and can provide updates at up to 10Hz.
|
 |
GPS antenna with cable & SMA connector
A GPS antenna with a 3m cable and SMA connector, suitable for use with the Neo-7M module. The antenna can be stuck to a window using double-sided tape.
|
 |
CH340G-based USB/serial module with chassis-mounting extension cable
This set includes two components:
1) A CH340G-based USB/serial module with 6-pin female header and micro-USB socket. This plugs directly into the 6-pin isolated serial header on the GPS Disciplined Oscillator.
2) A 10cm micro-USB extension cable with chassis-mounting socket. This plugs into the USB/serial module and provides a convenient way to mount the socket to the case using just three holes.
|
 |
5V to ±15V boost module
A small module that converts +5V to +15V and -15V, as used in the Automated Test Bench Swiss Army Knife project.
|
 |
ESP32 DevKitC microcontroller module with WiFi and Bluetooth
A DevKitC style ESP32 board, as used in the WiFi Bench Supply.
|
 |
Small 2A boost step-up regulator module (MT3608)
A 36x17mm module which uses the MT3608 boost regulator IC. Input is 2-24V, output is 5-28V at up to 2A continuous.
Efficiency up to 93%, switching frequency 1.2MHz. Output voltage is adjusted using a multi-turn trimpot. The input and output DC connections are made via pads in the corner of the PCB.
|
 |
ISD1820-based voice recording and playback module
This small module can record and play back up to 10 seconds of audio by default, although this can be changed by varying the value of one resistor.
See the article on the Junk Mail Repeller in the August 2019 issue for more details. Also used in the July 2021 Model Railway Level Crossing project.
|
 |
Small 4A boost step-up regulator module (XL6009) - red PCB version
A 49x23mm module that uses the XL6009 (LM2577 equivalent) boost regulator IC. Input is 3-32V, output is 5-35V at up to 4A continuous.
Efficiency up to 96%, switching frequency 400kHz. Output voltage is adjusted using a multi-turn trimpot. The input and output DC connections are made via pads in the corner of the PCB.
Note that as with a typical boost regulator, the output voltage can not be lower than the input voltage.
|
 |
VK2828U7G5LF TTL GPS/GLONASS/GALILEO module with antenna and cable
A VK2828U7G5LF GPS module from GMOUSE. Data sheet is available at https://github.com/CainZ/V.KEL-GPS/blob/master/VK2828U7G5LF%20Data%20Sheet%2020150902.pdf
Features onboard ceramic patch antenna. Basic specifications are:
- 28 x 28 x 8.6mm
- 3.3-5V supply at 25-35mA
- TTL signalling, default 9600 baud
- Enable input, 1PPS output plus serial TX & RX with NMEA 0183
- Tracking sensitivity -162dBm, capture sensitivity -160dBm
- Cold start 26 seconds, hot start one second
- 1-10Hz updates
A short 6-way cable with plug is supplied. If you order this, you may receive a VK2828U8G5LF which is an updated version of the module with slightly better specifications but provides the same functions.
| Cat No SC3362. Price: AUD $25.00 1 |
 |
Add to trolley |
In stock:  yes (11 available). Estimated dispatch time: 1-3 days | Related to:
- Project: A GPS-Synchronised Clock (March 2009 [print issue] [online issue])
- Project: A GPS-Synchronised Clock (March 2009 [print issue] [online issue])
- Project: Dead-Accurate 6-Digit GPS-Locked Clock, Pt.1 (May 2009 [print issue] [online issue])
- Project: GPS Driver Module For The 6-Digit Clock, Pt.2 (June 2009 [print issue] [online issue])
- Project: GPS Synchronisation For Clocks With Sweep Hands (November 2009 [print issue] [online issue])
- Project: GPS Synchronisation For Clocks With Sweep Hands (November 2009 [print issue] [online issue])
- Project: A Multi-Function GPS Car Computer, Pt.1 (January 2010 [print issue] [online issue])
- Project: A Multi-Function GPS Car Computer, Pt.2 (February 2010 [print issue] [online issue])
- Project: Build A GPS Boat Computer (October 2010 [print issue] [online issue])
- Project: A 2.5GHz 12-digit Frequency Counter, Pt.1 (December 2012 [online issue])
- Project: A 2.5GHz 12-Digit Frequency Counter, Pt.2 (January 2013 [print issue] [online issue])
- Project: Accurate GPS 1pps Timebase For Frequency Counters (February 2013 [online issue])
- Project: Deluxe GPS 1pps Timebase For Frequency Counters (April 2013 [print issue] [online issue])
- Project: Build A GPS Tracker & Record Your Journeys (November 2013 [print issue] [online issue])
- Project: L-o-o-o-n-g Gating Times For The 12-Digit Counter (July 2014 [print issue] [online issue])
- Project: 6-Digit Retro Nixie Clock Mk.2, Pt.1 (February 2015 [print issue] [online issue])
- Project: 6-Digit Retro Nixie Clock Mk.2, Pt.2 (March 2015 [print issue] [online issue])
- Project: High Visibility 6-Digit LED GPS Clock (December 2015 [print issue] [online issue])
- Project: High Visibility 6-Digit LED GPS Clock, Pt.2 (January 2016 [print issue] [online issue])
- Project: Touch-Screen Boat Computer With GPS (April 2016 [print issue] [online issue])
- Project: Touchscreen Super Clock (July 2016 [print issue] [online issue])
- Project: GPS-synchronised Analog Clock Driver (February 2017 [print issue] [online issue])
- Circuit Notebook: Remote water level monitoring using LoRa and Arduino (July 2017 [print issue] [online issue])
- Project: An Arduino Data Logger with GPS (August 2017 [print issue] [online issue])
- Project: Arduino Data Logger Part 2 (September 2017 [print issue] [online issue])
- Feature: El Cheapo Modules Part 10: GPS receivers (October 2017 [print issue] [online issue])
- Project: Super Clock now shows your electricity tariff (July 2018 [print issue] [online issue])
- Project: GPS-synched Frequency Reference Pt.1 (October 2018 [print issue] [online issue])
- Project: GPS-synched, lab-quality frequency reference (Part 2) (November 2018 [print issue] [online issue])
- Project: Very accurate speedo, car clock & auto volume change (June 2019 [print issue] [online issue])
- Project: Advanced GPS Computer - Part 1 (June 2021 [print issue] [online issue])
- Project: Advanced GPS Computer – Part 2 (July 2021 [print issue] [online issue])
- Project: New GPS-Synchronised Analog Clock (September 2022 [print issue] [online issue])
|
| View 117 other items relevant to the same project(s) |
|
 |
70W COB LED panel - cool white (6000-6500K)
A 70W cool white LED panel, as featured in the article on the High-Power Buck/Boost LED Driver, June 2022.
|
 |
70W COB LED panel - warm white (3000-3200K)
A 70W warm white LED panel, as featured in the article on the High-Power Buck/Boost LED Driver, June 2022.
|
 |
Relay - 1A DPDT 5V DC coil (EA2-5NU)
A small EA2-5NU 5V DC relay, as used in various projects.
|
|
IPP80P03P4L-07 high-current P-channel Mosfet
A high-current P-channel Mosfet with low on-resistance in a standard TO-220 package. Note: package marking is '4P03L07'.
This is a faster switching, lower-cost version of the IPP80P03P4L-04 Mosfet that we also sell, but with slightly higher on-resistance.
Its critical specifications are:
Maximum drain-source voltage: 30V
Maximum gate-source voltage: +5V, -16V
Maximum continuous drain current: 80A
Maximum pulsed drain current: 320A
Maximum dissipation: 88W
Gate threshold voltage: 1-2V
On-resistance: 5.9mΩ
Input capacitance: 4.4nF
Output capacitance: 1.2nF
Reverse transfer capacitance: 30pF
While this is not a complementary type to the IPP80N06S4L-07 N-channel type we also sell, it is very well matched.
|
 |
0.96in yellow/cyan OLED with SSD1306 controller
A 4-pin (I²C) OLED screen with the top quarter in yellow and the rest in cyan. The display active area is approximately 22 x 11mm while the whole module is about 27 x 19mm.
|
 |
DFPlayer Mini audio player module
A DFPlayer Mini module with microSD card socket. It is controlled via a serial port and can play MP3, WMV and WAV files from the SD card in stereo. It includes a small onboard mono amplifier. See the web for more details.
|
|
IRFB7434(G)PBF N-channel high-current Mosfet
A very high-current N-channel Mosfet with low on-resistance in a standard TO-220 package.
Its ratings are: 40V 195A (1270A peak) 1.25mΩ on-resistance with ±20V Vgs rating.
The model number of parts supplied might or might not have a G in it but as far as we can tell, the devices are identical and this just represents a change in the labelling scheme.
|
 |
64x32 white OLED screen (0.49-inch, 1.25cm diagonal)
A small 64x32 white OLED screen, as used in the Pocket Audio Oscillator and SMD Test Tweezer projects.
|
 |
128x64 Blue LCD screen with KS0108-compatible controller
A blue backlit LCD screen suitable for use with several of Phil Prosser's projects like the DSP Active Crossover, DDS, DIY Solder Reflow Oven and Intelligent Dual Hybrid Power Supply.
|
 |
4-pin PWM fan header
One Molex 47053-1000 polarised header with a truncated tab, to suit a 4-pin PWM fan plug.
Up to three are needed to build the Fan Controller.
|
|
Si8751AB 2.5kV isolated Mosfet driver with integral power supply
A single Si8751AB Mosfet driver IC in an 8-pin SOIC package, as used in the Digital Lighting Controller and original Universal 12/24V Battery Charge Controller.
|
 |
SMD resistor - 15mΩ ±1% M6332/2512 3W (CRA2512-FZ-R015ELF or similar)
One SMD shunt resistor rated at 15mΩ ±1% 3W. As used in the Induction Motor Speed Controller, Arduino-based Adjustable Power Supply and Battery Multi Logger/Manager (up to three required for the latter).
|
 |
Si4732-A10 AM/FM/SW/LW/RDS Radio Receiver IC
The Si4732 radio receiver IC in a SOIC-16 package, as used in the 'Single-Chip Silicon Labs FM/AM/SW Digital Radio Receiver' from the July 2021 issue.
This receiver IC integrates the complete broadcast tuner and receiver function from antenna input to digital audio output.
|
 |
MCP4251-502E/P dual 5kΩ digital potentiometer
An MCP4251-502E/P chip in a 14-pin DIL package, as used in the June 2019 GPS "Finesaver Plus" Speedo/Clock/Volume Control project.
|
 |
Pair of Signetics NE555Ns
Pair of Signetics-branded NE555N timer ICs for the critical A9 and B9 paddles used in the Recreating Arcade Pong article from June 2021.
|
 |
Spin FV-1 digital effects IC (SOIC-28)
One Spin SPN1001-FV1 IC, as used in our Digital FX Unit in the April 2021 issue.
|
 |
Pair of CSD18534KCS logic-level Mosfets
Pack of two CSD18534KCS N-channel logic level Mosfets. These replace the IPP230N06L3 which are now obsolete.
They are suitable replacements for the STP30NE06L and RFP30N06LE Mosfets specified in a number of our projects. The main difference is that these ones have much faster switching.
They can be used with the Ultrasonic Anti-Fouling and Barking Dog Blaster units. The critical parameters are:
Breakdown voltage: 60V
Maximum DC current: 73A
Peak current: 164A
Power dissipation: 107W
Maximum on-resistance: 7.6mΩ @ 10V, 10.2mΩ @ 4.5V
Maximum gate voltage: ±20V
Input capacitance: 1500pF
Gate charge: 9.3nC
Turn-on delay/rise time: 4.2ns/4.8ns
Turn-off delay/fall time: 10.4ns/2.4ns
These are also suitable for use in the 40V 5A Hybrid Switchmode/Linear Bench supply project.
|
 |
PCB-mount right-angle SMA socket
A PCB-mounting SMA socket with a shaft around 13-14mm long, suitable for the VHF input of the DAB+/FM/AM radio.
|
 |
16x2 Alphanumeric serial (I²C) LCD module with blue backlight
A 16x2 alphanumeric LCD module with blue backlight, supplied with an I²C driver module. Solder the module to the display and you can update the characters on the display over an I²C bus.
For more details, see the El Cheapo Asian Electronic Modules article in the March 2017 issue.
|
|
IPP80P03P4L-04 high-current P-channel Mosfet
A high-current P-channel Mosfet with very low on-resistance in a standard TO-220 package. Note: package marking is '4P03L04'.
This is a lower on-resistance version of the IPP80P03P4L-04 Mosfet that we also sell, but with slightly slower switching and it costs a bit more.
Its critical specifications are:
Maximum drain-source voltage: 30V
Maximum gate-source voltage: +5V, -16V
Maximum continuous drain current: 80A
Maximum pulsed drain current: 320A
Maximum dissipation: 137W
Gate threshold voltage: 1-2V
On-resistance: 3.7mΩ
Input capacitance: 8.7nF
Output capacitance: 2.4nF
Reverse transfer capacitance: 65pF
|
 |
One 40kHz 50W ultrasonic transducer
An ultrasonic transducer that can be used to build the High Power Ultrasonic Cleaner from the September & October 2020 issues.
Specifications are resonance: 40kHz ±0.8kHz, capacitance: 3.8nF ±10%, resonant impedance: ≤20Ω, size: 45x51x38mm, isolation resistance @ 2.5kV: ≥100MΩ
|
 |
ETD29 transformer components
A set of parts needed to build an ETD29-based transformer (excluding winding wire and insulation). The set contains:
- 1 x 13-pin former (B66359W1013T001)
- 2 x iron cores (B66358G0000X187)
- 2 x clips (B66359S2000X000)
This set is suitable for building a variety of projects - see below.
|
 |
WS2812 8x8 RGB LED matrix
A 10x10cm module with 64 SMD 5050 package RGB LEDs that runs from a 5V supply and is controlled using a 1-wire style serial bus.
See our article in the January 2020 issue for details on how these modules can be driven and daisy-chained.
|
 |
MAX038 function generator IC (DIP-20)
A MAX038 Function Generator IC in a 20-pin narrow dual inline package.
|
|
MC1496P double-balanced mixer IC (DIP-14)
An MC1496P double-balanced mixer IC in a 14-pin dual inline package (it might be a BP suffix version which has a wider operating temperature range).
These ICs are now getting difficult to obtain in this package.
|
 |
GY-68 Barometric Pressure/Altitude/Temperature I²C Sensor breakout board
A tiny breakout board with a BMP180 barometric pressure/altitude/temperature sensor plus a regulator and level shifter. Connects easily to an Arduino, Micromite, etc using the I²C bus via a standard 4-pin header. For more information, see the GY-68 and BMP180 data sheets.
|
 |
DHT22/AM2302 Compatible Temperature and Humidity sensor module
A DHT22/AM2302 or equivalent digital temperature and humidity sensor module, as described in the February 2017 "El Cheapo Electronic Modules" article.
If you're using this to build the Altimeter/Weather Station from December 2017, you will need a 1k resistor wired between pins 1 and 2 and a 100nF capacitor wired in series with pin 4; see errata.
|
 |
AD9833 DDS module with programmable attenuator
A Direct Digital Synthesis module using the AD9833 IC and a 25MHz crystal oscillator. As described in the El Cheapo Asian Electronics Modules article in the April 2017 issue.
This is the version with the onboard programmable gain amplifier.
The SMA and header connectors may be supplied pre-soldered.
|
|
MC1310P FM Stereo Demodulator IC (DIP-14)
An MC1310P FM Stereo Demodulator IC in a 14-pin dual inline package.
These are no longer being manufactured; they are new-old stock.
|
 |
75cm telescopic FM antenna
750mm fully extended, 167mm minimum length. Seven sections, 7mm diameter, 3mm hole for screw mounting.
Ideal for FM reception. Suitable for the Super-9 Stereo FM Radio.
|
 |
BF992 dual-gate depletion-mode Mosfet (SOT-143B)
N-channel dual-gate depletion Mosfets as used in the Super-9 FM Radio.
Two are needed per project.
|
 |
Neosid M99-073-96 K3 Assembly pack for Super-9 Stereo FM Radio
One Neosid M99-073-96 K3 Assembly comprising:
M76-403-95 K Former
M76-404-95 K Can
M76-409-95 K3 Cup Core
M76-410-95 K3 Screw Core
Two are required to build the Super-9 Stereo FM Radio.
|
 |
CA3089E FM IF amplifier and demodulator IC (DIP-16)
An FM amplifier/limiter/demodulator chip, as used in the Super-9 Stereo FM Radio.
|
 |
FJA4313OTU 15A NPN transistor
One 230V, 15A, 130W 30MHz NPN transistor in a TO-247 package.
As used in the SC200 audio amplifier and 45V, 8A High-power Linear Bench Supply (four required).
|
 |
LM317HVT regulator and INA282AIDR shunt monitor IC for 45V 8A Linear Bench Supply
A set of two parts that are currently hard to get for the High Current Linear Bench Supply project.
|
 |
PCA9685 16-channel 12-bit PWM module
A PCA9685-based PWM I/O expander module, as described in the November 2019 issue. Controlled via I2C.
|
 |
MCP23017 16-channel I/O expander module
An MCP23017-based 16-channel I/O expander module, as described in the November 2019 issue. Controlled via I2C. Supplied with separate headers.
|
 |
PCF8574 8-channel I/O expander module
A PCF8574-based 8-channel I/O expander module, as described in the November 2019 issue. Controlled via I2C.
|
 |
One ultra-bright PINK M3216/1206 SMD LED
One very bright diffused pink SMD LED in a 3216/1206 package (3.2 x 1.6mm). 200-300mCd @ 20mA, Vf=2.0-3.6V @ 20mA.
|
|
Strip of ten high-brightness CYAN M3216/1206 SMD LEDs
Ten bright cyan SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). 475-480nm??, ??mCd @ 20mA, 3.0-3.4V @ 20mA.
|
 |
Strip of ten ultra-bright YELLOW M3216/1206 SMD LEDs
Ten very bright diffused yellow SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). 15-21/Y2C-AN1P2/3T: 588-590nm, 100-150mCd @ 20mA, 130° viewing angle, Vf=2.0-2.1V @ 20mA.
|
|
Strip of ten ultra-bright AMBER M3216/1206 SMD LEDs
Ten very bright diffused orange/amber SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). KO-1206QOC/08: 600-605nm, 150-200mCd @ 20mA, 120° viewing angle, Vf=2.1-2.3V @ 20mA.
|
|
Strip of ten ultra-bright BLUE M3216/1206 SMD LEDs
Ten very bright diffused blue SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). 465-475nm, ~650mCd @ 20mA, 120° viewing angle, Vf=3.2-3.4V @ 20mA.
|
|
23LC1024 128kB (1Mb) RAM (SOIC-8)
A one megabyte static RAM (SRAM) chip in an 8-pin SOIC SMD package, suitable for use with the Micromite LCD BackPack V3.
|
|
AT25SF041(B) 512KB flash (SOIC-8)
A half megabyte flash memory chip in an 8-pin SOIC SMD package, suitable for use with the Micromite LCD BackPack V3.
|
 |
10uF 16V X7R ceramic through-hole capacitor
A small 10µF ceramic capacitor with superior performance in a through-hole package, easily soldered and suitable for use with various Micromites.
|
|
22uF 6.3V X7R ceramic through-hole capacitor
A small 22µF ceramic capacitor with superior performance in a through-hole package, easily soldered and suitable for use with various Micromites.
|
 |
GY-BM BMP280 module
GY-BMP280 Barometric Pressure/Altitude/Temperature I²C Sensor breakout board
A tiny breakout board with a BMP280 barometric pressure/altitude/temperature sensor plus a regulator and level shifter. Connects easily to an Arduino, Micromite, etc using the I²C bus via a 6-pin header. For more information, see the BMP280 data sheet.
|
 |
GY-BME280 Barometric Pressure/Altitude/Temperature/Humidity I²C Sensor breakout board
A tiny breakout board with a BME280 barometric pressure/altitude/temperature/humidity sensor plus a regulator and level shifter. Connects easily to an Arduino, Micromite, etc using the I²C bus via a standard 4-pin header. For more information, see the BME280 data sheet.
|
 |
TDA1543A DAC IC
A 16-bit Stereo DAC IC (DIP-8) which can be used to build the Raspberry Pi audio board (for speech synthesis etc).
Note that this A-suffix version is slightly different from the part originally used in that project and so you need to make some slight changes to the Raspberry Pi configuration for it to work. You can download the files you need to do this from: http://www.siliconchip.com.au/Shop/6/5097
|
|
TDA1543 DAC IC
16-bit Stereo DAC IC (DIP-8) as used in the Bad Vibes Infrasound Snooper and Raspberry Pi audio board (for speech synthesis etc).
|
 |
Spare cable for VK2828U7G5LF GPS module
A 6-pin micro JST (1.25mm) plug with 10cm wires terminated in bare ends. Plugs into the VK2828U7G5LF/VK2828U8G5LF modules.
This allows you to swap the GPS module between multiple boards without having to de-solder the wires, or can be used to replace a damaged cable.
The wires are colour-coded but the colours do not necessarily match those of the wires supplied with the GPS module.
|
 |
Small 2.5A step-down regulator module (LM2596-based)
A 45x20mm module which uses the LM2596 buck regulator IC. Input is 3.2-35V, output is 1.25-35V at up to 2.5A continuous.
Efficiency up to 92%. Output voltage is adjusted using a multi-turn trimpot. The input and output DC connections are made via pads in the corner of the PCB.
Note that as with a typical buck regulator, the output voltage must be at least a couple of volts lower than the input voltage for proper regulation.
|
 |
TEA5767 FM receiver module
A small breakout board for the TEA5767 FM receiver IC, as used in the Micromite LCD BackPack Clock Radio described in Circuit Notebook, June 2019.
A pinout diagram for this module can be found at: https://forum.arduino.cc/index.php?topic=550026.msg3844369#msg3844369
|
 |
Smaller TEA5767 FM receiver module
A small breakout board for the TEA5767 FM receiver IC, as used in the Micromite LCD BackPack Clock Radio described in Circuit Notebook, June 2019.
This is the smaller version of the module, with five pins regularly spaced on each side, as the author used in that article.
|
 |
PAM8610 2x10W Class-D stereo amplifier module
A small stereo Class-D amplifier module which can run from 8-12V DC and can deliver up to 10W per channel into 4Ω. As used in the Micromite LCD BackPack Clock Radio described in Circuit Notebook, June 2019.
|
 |
465mm extendable VHF whip antenna with SMA connector
465mm fulled extended, 190mm minimum length. Ideal for DAB+ reception; should work OK for FM but a longer antenna would be better for FM.
|
 |
700mm extendable VHF whip antenna with SMA connector
700mm fulled extended, 190mm minimum length. Good for FM and ideal for DAB+ reception.
|
 |
PCB-mount right-angle PAL socket
|
|
STFU13N65M2 650V logic-level Mosfet
One STFU13N65M2 650V logic-level Mosfet. Suited for high speed switching of rectified mains or other high voltage supplies.
One or two are required for the Hifi Stereo Valve Preamplifier.
Specifications:
Maximum drain-source voltage: 650V
Maximum continuous drain current: 10A
Maximum pulsed drain current: 40A
Maximum on-resistance: 0.43Ω
Gate charge: 17nC
Input capacitance: 590pF
Turn-on delay time: 11ns
Rise time: 7.8ns
Turn-off delay time: 38ns
Fall time: 12ns
This replaces the IPA60R520E6 previously used as it has similar or superior specifications.
|
 |
SW-18010P Vibration Sensor Switch
A small switch in a can which closes when exposed to shocks/vibration/acceleration.
As used in the Motion-sensing 12V Power Switch project in the February 2019 issue.
|
|
CP2102-based USB/TTL serial converter with microUSB socket and 6-pin right-angle header (clone version)
A small USB/serial converter module with a microUSB connector - no cable included. Can be used to build the Touchscreen Appliance Energy Meter or to add a USB port to another project which uses an RS-232 TTL serial interface.
Modern operating systems like Windows 10 should not require any drivers to use this device - plug it in and it should be recognised and ready to use straight away.
We have only tested this adaptor in Windows; it should work with Linux and Mac OSX.
Please note: this is a clone version which works but the 3.3V output is actually closer to 4.2V. We have reduced the price because of this.
|
|
TDA7052AT 1.1W audio amplifier IC (SOIC-8)
A TDA7052AT mono amplifier IC, as used in the Opto-Theremin and Steam Train Whistle projects.
|
 |
ESP-01 WiFi module (with ESP8266 IC)
A small WiFi module with an ESP8266 IC and onboard antenna. Communication is via an 8-pin (4x2) header. See the article "A WiFi Server for $5" in the December 2014 issue.
Please note: if you order this item, you may receive an upgraded ESP-01S which has more flash (1MB vs 512KB).
|
 |
CP2102-based USB/TTL serial converter with 5-pin header and 30cm jumper cable
A small USB/serial converter module which plugs straight into a USB port and provides a standard 5-pin header interface with 5V, 3.3V, GND and TTL (3.3V) serial TX/RX pins. Suitable for direct connection to any of the Maximite or Micromite projects.
Modern operating systems like Windows 10 should not require any drivers to use this device - plug it in and it should be recognised and ready to use straight away.
The 5-way cable supplied has female "Dupont" headers on both ends, which plug into standard pin headers. It can be used to connect the adaptor to a Micromite LCD BackPack.
We have only tested this adaptor in Windows; it should work with Linux and Mac OSX.
|
|
MC1374P AV modulator IC (DIP-14)
An MC1374P A/V modulator IC in a 14-pin dual inline package.
These are no longer being manufactured; they are new-old stock.
|
 |
5dBi 2.4GHz WiFi antenna with U.FL/IPX adaptor cable
A 175mm-tall 2.4GHz black WiFi antenna with right-angle bending hinge, SMA plug and 5dBi gain (vertical polarisation).
Supplied with a matching chassis-mount SMA socket and attached 20cm cable terminated in a U.FL/IPX connector, as used on many WiFi devices.
|
 |
2dBi omnidirectional 2.4GHz WiFi antenna with U.FL/IPX adaptor cable
A 28mm-tall 2.4GHz black WiFi antenna with SMA plug and 2dBi gain (omnidirectional).
Supplied with a matching chassis-mount SMA socket and attached 10cm cable terminated in a U.FL/IPX connector, as used on many WiFi devices.
|
 |
Elecrow 1A/500mA Li-ion/LiPo charger board with USB power pass-through
A 46 x 32mm module with a micro-USB type B input port and a full-size USB type A output port, plus connections for a solar panel and Li-ion/LiPo cell.
For more details, see the article in the August 2017 issue titled "El Cheapo Modules: Li-ion & LiPo Chargers" (starting on page 44).
PLEASE NOTE: the red/black colour coding on the cables supplied MAY NOT match the polarity of the connectors on this module.
Incorporates an onboard step-up circuit to provide a regulated 5V output (at up to 500mA) from the cell, plus a 1A charger and automatic input-to-output pass-through. Supplied with three 2-wire JST 2.0 cables to connect the cell and output and optionally, a solar panel for charging. Also incorporates battery level indicator LEDs.
Note that the input and output USB socket data lines are not connected.
|
 |
Geeetech VS1053B MP3/audio shield for Arduino
An Arduino shield with a VS1053B audio codec chip. Has a stereo output socket, mono input, onboard electret microphone, microSD card socket and power/activity LEDs. Can play MP3, MP4, Ogg Vorbis, FLAC, WAV and more and record in Ogg Vorbis format with appropriate software.
For more details, see the article in the July 2017 issue titled "An Arduino stereo audio playback and recording shield". Also used in the Arduino Music Player project in the same issue.
|
 |
NRF24L01+PA+LNA with SMA connector & antenna
An NRF24L01 module with 8-pin header. Capable of 1Mbps at distances in excess of 1km. Has onboard LNA (for receive) and power amplifier (for transmit). WiFi-type antenna connects to SMA connector and can be mounted off-board using an SMA extension cable.
Note: please check ACMA to verify the allowable frequency range and legal power limit on the frequency you are using to ensure you remain in compliance.
|
|
GY-BME280 module (6-pin/3.3V version)
GY-BME280 Barometric Pressure/Altitude/Temperature/Humidity I²C Sensor breakout board
A tiny breakout board with a BME280 barometric pressure/altitude/temperature/humidity sensor plus a regulator and level shifter. Connects easily to an Arduino, Micromite, etc using the I²C bus via a 6-pin header. For more information, see the BME280 data sheet.
|
 |
Set of four 8-gang potentiometers with knobs for the 2/3-Way Active Crossover
A set of hard-to-get components for the 2/3-Way Adjustable Active Crossover. This pack includes:
- 4 x PTD908-1015F-B103 eight-gang linear 10kΩ 9mm potentiometers
- 4 x 1227-J knobs, to suit the potentiometers
The PCB, panels, case pieces and SMD parts are available separately from our shop. The other parts can be purchased from retailers like Jaycar and Altronics.
|
|
LT1490ACN8 dual "Over-the-Top" rail-to-rail op amp
An LT1940A dual op amp in 8-pin DIP package, as featured in the July 2017 article titled: “Over-The-Top” rail-to-rail op amps. Typical specifications are as follows:
Supply voltage range: 2.4-44V
Input common mode range: 0-44V (independent of supply voltage)
Quiescent current: ~40µA/amplifier (~80µA total)
Gain bandwidth product: 200kHz
Slew rate: 60mV/µs
Input offset voltage: 150µV
Input bias current: 1nA
Input noise voltage: 50nV/√Hz
Output swing, no load: 3mV to Vs-12mV
Ouptut swing, 5mA load: 250mV to Vs-600mV
PSRR: 98dB
CMRR @ 1kHz: 92dB
|
|
IPP80N06S4L-07 high-current N-channel Mosfet (TO-220)
A high-current N-channel Mosfet with low on-resistance in a standard TO-220 package. Note: package marking is '4N06L07'.
Its critical specifications are:
Maximum drain-source voltage: 60V
Maximum gate-source voltage: ±16V
Maximum continuous drain current: 80A
Maximum pulsed drain current: 320A
Maximum dissipation: 79W
Gate threshold voltage: 1.2-2.2V
On-resistance: 6.4mΩ
Input capacitance: 4.4nF
Output capacitance: 1.0nF
Reverse transfer capacitance: 45pF
While this is not a complementary type to the IPP80P03P4L-07 P-channel type we also sell, it is very well matched.
|
 |
Elecrow 1A Li-ion/LiPo charger board with USB pass-through
A 68 x 49mm module with a mini-USB type B input port and a full-size USB type A output port, plus connections for a solar panel and Li-ion/LiPo cell.
For more details, see the article in the August 2017 issue titled "El Cheapo Modules: Li-ion & LiPo Chargers" (starting on page 44).
PLEASE NOTE: the red/black colour coding on the cables supplied MAY NOT match the polarity of the connectors on this module.
Incorporates an onboard step-up circuit to provide a regulated 5V output from the cell, plus a 1A charger. Supplied with two 2-wire JST 2.0 cables to connect the cell and optionally, a solar panel for charging. Also incorporates a power switch and battery level indicator LEDs.
|
 |
DS3231-based Real Time Clock & Calendar module with mounting hardware
A DS3231-based RTCC module with onboard I²C pull-up resistors and pin header interface. Included in the pack are two 10mm M2 Nylon tapped spacers and four 6mm M2 Nylon machine screws for mounting.
Note 1: no cell is supplied with the module. It is designed to use a rechargeable cell. You can use a CR2032 (or similar) Lithium button cell but in this case you MUST remove the SMD diode to prevent the battery from being charged. See the Super Clock article in the July 2016 issue for more details.
Note 2: as this module has onboard pull-up resistors for the I²C bus, you may need to remove them, or avoid fitting pull-up resistors on the master, for it to share a bus with other peripherals.
|
 |
TP4056 1A Li-ion/LiPo charger with mini USB socket
A 26 x 20mm pre-built module which will charge a single Li-ion or LiPo cell from a 4.5-5.5V source (eg, USB).
Charges at up to 1A. Charge current can be changed by switching out one of the SMD resistors. Thermal regulation protects the device before it overheats, reducing charging current if necessary.
For more details, see the article in the August 2017 issue titled "El Cheapo Modules: Li-ion & LiPo Chargers" (starting on page 44).
|
 |
TP4056 1A Li-ion/LiPo charger with micro USB socket
A 26 x 20mm pre-built module which will charge a single Li-ion or LiPo cell from a 4.5-5.5V source (eg, USB).
Charges at up to 1A. Charge current can be changed by switching out one of the SMD resistors. Thermal regulation protects the device before it overheats, reducing charging current if necessary.
For more details, see the article in the August 2017 issue titled "El Cheapo Modules: Li-ion & LiPo Chargers" (starting on page 44).
|
|
LT1638CN8 dual "Over-the-Top" rail-to-rail op amp
An LT1638 dual op amp in 8-pin DIP package, as featured in the July 2017 article titled: “Over-The-Top” rail-to-rail op amps. Typical specifications are as follows:
Supply voltage range: 2.4-44V
Input common mode range: 0-44V (independent of supply voltage)
Quiescent current: ~170µA/amplifier (~340µA total)
Gain bandwidth product: 1.2MHz
Slew rate: 380mV/µs
Input offset voltage: 250µV
Input bias current: 20nA
Input noise voltage: 20nV/√Hz
Output swing, no load: 3mV to Vs-20mV
Ouptut swing, 5mA load: 250mV to Vs-600mV
PSRR: 100dB
CMRR @ 1kHz: 103dB
|
 |
GY-471 3A high-side current monitor module
A small PCB with a MAX471 IC which contains a 35m# shunt rated for up to 3A, plus a high-side current sense amplifier which provides one analog output indicating the magnitude of the current flow and a digital output indicating the direction. Supplied with a pin header and terminal block. An easy way to monitor DC current flow up to 3A with a microcontroller.
Featured in the Circuit Notebook entry titled "12V DC Cyclic Pump Timer" in the July 2017 issue.
|
 |
Pack of ten slide potentiometers for 10-Band Graphic Equaliser
Pack of ten PS45-21PC3BR10K dual gang linear slide potentiometers with centre detent
|
 |
MAX7219 controller (SMD) with pluggable 8x8 red LED matrix display
An 8x8 red LED dot matrix, driven by an SMD MAX7219 on a separate, pluggable board. The boards can be daisy chained to make larger displays and are controlled via a serial bus.
Pin headers are supplied separately and can be soldered onto the sides of the display, or you can solder one display directly to another using short wire links.
See the article in the June 2017 issue, titled "El Cheapo Modules, Part 7: LED Matix displays".
|
 |
MAX7219 controller (DIP) with pluggable 8x8 red LED matrix display and jumper leads
An 8x8 red LED dot matrix, driven by a DIP MAX7219 on a separate, pluggable board. The boards can be daisy chained to make larger displays and are controlled via a serial bus.
The onboard right-angle pin header for power and communications is next to the MAX7219 IC (see photo). It is supplied with a short length of ribbon cable with female DuPont headers at either end, for connection to your microcontroller board.
See the article in the June 2017 issue, titled "El Cheapo Modules, Part 7: LED Matix displays".
|
 |
MAX7219 controller (SMD) with red 8-digit 7-segment display
An 8-digit 7-segment red LED display with 9.2mm-high digits, driven by an SMD MAX7219 IC. It can be controlled via an SPI serial bus.
See the article in the June 2017 issue, titled "El Cheapo Modules, Part 7: LED Matix displays".
|
 |
AD9833 DDS module without attenuator
A Direct Digital Synthesis module using the AD9833 IC and a 25MHz crystal oscillator. As described in the El Cheapo Asian Electronics Modules article in the April 2017 issue.
This is the version with no gain or output attenuator.
|
 |
Mosquito Lure SMD parts: TPA2005D1DGNR (MSOP-8) Class-D 1.45W amplifier IC and microUSB socket
A set of two of the harder-to-get parts for the Male Mosquito Lure:
- 1 TPA2005D1DGNR (MSOP-8) Class-D audio amplifier IC
- 1 SMD micro-USB socket for power input
|
|
MCP120-270GI/TO Supply Supervisor IC (TO-92)
An optional supply supervisor IC which can be used in the Micromite Plus Explore 100 development board (not included in the short form kit).
|
|
ACS718 20A isolated current monitor
An ACS718KMATR-20B-T in a wide SOIC-16 package, as required by the revised version of the Appliance Energy Meter.
This IC provides sufficient isolation to meet insulation standards for double-insulated equipment operating at 230VAC.
|
 |
Talema AC1015 Current Transformer
A 1000:1 15A current transformer as used in the Appliance Earth Leakage Tester.
|
|
Strip of ten ultra-bright GREEN M3216/1206 SMD LEDs
Ten very bright diffused green SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). KO-1206QGC/08: 527-530nm, 192-230mCd @ 20mA, 120° viewing angle, Vf=2.5-2.7V @ 20mA.
|
|
Strip of ten ultra-bright RED M3216/1206 SMD LEDs
Ten very bright diffused red SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). KO-1206QRC/08: 620-625nm, 150-200mCd @ 20mA, 120° viewing angle, Vf=2.0-2.2V @ 20mA.
|
 |
Red, White, Yellow & Black PCB-mounting RCA sockets
Four different coloured PCB-mounting switched RCA sockets.
Traditionally, the stereo input sockets for an audio device are white (left) & red (right). But sourcing white sockets is hard, so we're offering this set.
These sockets can be used with projects such as the CLASSiC DAC. While they aren't an exact fit for the footprint on that PCB, they will fit with a small amount of coaxing.
Use the white and red for the left & right audio inputs and the other two for whatever you like.
|
 |
Acrylic pieces to make two inductor bobbins
A set of 22 pieces of laser-cut 3mm acrylic to make two inductor bobbins for the Majestic, Senator or Budget Senator speakers.
|
 |
Two BSO150N03 dual SMD Mosfets plus a 4.7kΩ M3216/1206 resistor
Two dual Mosfets plus a 4.7kΩ resistor, as used in the 4-input Temperature Sensor PCB for the Raspberry Pi.
The Mosfets are BSO150N03, dual logic-level N-channel, 30V, 6.1A, 15mΩ, 1420pF input capacitance.
The resistor is a 4.7kΩ ±1% SMD 3216/1206 type.
|
 |
Micromite Parking Assistant sensor & lid
A set of two parts for the Micromite-based Ultrasonic Garage Parking Assistant project: the HC-SR04 Ultrasonic Distance Sensor and laser-cut lid to suit, which fits a UB5 Jiffy Box, with holes for the sensor and screws.
You will also need a Micromite LCD BackPack (complete kit available separately) and the associated UB3 laser-cut box lid, plus the rest of the parts listed in the article.
|
 |
Dual gang 50kΩ 16mm logarithmic taper potentiometer with spline tooth shaft
This potentiometer can be used in the Stereo Valve Preamplifier. This value is hard to get in this style of pot but it suits driving devices with a relatively high load impedance.
Note that because it has a spline shaft, not all types of knob will necessarily fit. The types with a grub screw generally work OK, or those designed for spline shafts. Also the shaft is quite short, which means you won't have to cut it down but it will not protrude a long way through a thick panel either.
|
 |
Six 70mm tall 7-segment displays, BLUE plus four matching diffused 5mm LEDs
Six 70mm tall 7-segment Common Anode displays plus four matching diffused 5mm LEDs, to suit the High Visibility 6-Digit LED Clock project.
The digit visible size is 32.2 x 56.9mm and the part code is LBT23101BB. These are pin compatble with the Kingbright SA23-11 series. They are bright and highly efficient; see Fig.3 on page 44 of the December 2015 issue for the I/V curve.
|
 |
Six 70mm tall 7-segment displays, EMERALD GREEN plus four matching 5mm LEDs
Six 70mm tall 7-segment Common Anode displays plus four matching 5mm LEDs, to suit the High Visibility 6-Digit LED Clock project.
The digit visible size is 32.2 x 56.9mm and the part code is LBT23101BGG or FJS23101DPG. These are pin compatble with the Kingbright SA23-11 series. They are bright and highly efficient; see Fig.3 on page 44 of the December 2015 issue for the I/V curve.
Note: we were originally supplying C503B-GCN-CY0C0791 LEDs which have a clear lens however we have now switched to an unknown type of green LED with the following specifications, which is an excellent match to the 7-segment displays: 515-525nm, 4000-4500mCd. Note that these are so bright that you might have to increase the current limiting resistor for the colon drive to get them to match the 7-segment display.
|
 |
Six 70mm tall 7-segment displays, HIGH BRIGHTNESS RED plus four matching diffused 5mm LEDs
Six 70mm tall 7-segment Common Anode displays plus four matching diffused 5mm LEDs, to suit the High Visibility 6-Digit LED Clock project.
The digit visible size is 32.2 x 56.9mm and the part code is either CAI23101BS or SA23-11SRWA, depending on which is in stock. These are pin compatble with the Kingbright SA23-11 series. They are bright and highly efficient; see Fig.3 on page 44 of the December 2015 issue for the I/V curves.
The best-matching 5mm LEDs we can find are TLDR5400 type. These are bright and diffuse with no hint of orange.
|
 |
Six 70mm tall 7-segment displays, GREEN plus four matching diffused 5mm LEDs
Six 70mm tall 7-segment Common Anode displays plus four matching diffused 5mm LEDs, to suit the High Visibility 6-Digit LED Clock project.
The digit visible size is 32.2 x 56.9mm and the part code is SA23-11GWA. They are relatively bright if driven with sufficient current; see Fig.3 on page 44 of the December 2015 issue for the I/V curves.
The 5mm LEDs supplied are LTL2R3KGD which we find has a very similar colour. LTL2R3KG are a close second.
|
 |
Blue 5mm LED with diffused lens (25mm leads)
A high-brightness blue LED in a 5mm through-hole package with standard lead length (25mm) and diffused lens. Quite good brightness at 3V and can be driven with just a few milliamps.
|
 |
Blue 5mm LED with diffused lens (15mm leads)
A high-brightness blue LED in a 5mm through-hole package with 15mm lead length and diffused lens. Quite good brightness at 3V and can be driven with just a few milliamps.
|
 |
40109B level shifter IC (DIP-16)
A CD40109BE quad level shifter IC in a 16-pin DIL package.
|
 |
2 x HN3A51F + 1 x IMX8-7-F + 2 x BC846C transistors for the Ultra-LD Mk.4 Power Amplifier module
A pack of three dual transistors and two standard transistors:
2 x HN3A51F dual PNP transistors, 120V, 100mA in an SM6 package
1 x IMX8-7-F dual NPN transistor, 120V, 50mA in a SOT-26 package
2 x BC846C high-gain NPN transistors, 80V, 100mA in an SOT-23 package
These transistors are required to build one Ultra-LD Mk.4 module. They have been discontinued and are now hard to get.
|
 |
SA156 plastic bobbin
An SA156 plastic sewing machine bobbin which can be used for winding high-current air-cored inductors in the range of about 1-10µH. 6mm ID, 20mm OD, 10mm height.
|
|
TDA7052A 1.1W audio amplifier IC (DIP-8)
A TDA7052A mono amplifier IC, as used in the Opto-Theremin project.
|
 |
MC1496BDG or MC1496DR2G Balanced Modulator/Demodulator IC (SOIC-14)
An MC1496BDG modulator/demodulator IC, as used in the Opto-Theremin project.
|
 |
Pack of three AD8038ARZ Video Amplifier ICs
Three wide bandwidth video op amps, as used in the Wideband Active Differential Oscilloscope Probe project (SOIC-8 packages).
|
 |
Pair of BSS83 dual-gate SMD Mosfets
These low-capacitance dual-gate Mosfets are used as the input buffers in the Wideband Active Differential Oscilloscope Probe.
Unfortunately, they are no longer being manufactured and there is no direct replacement so we are making them available for people who wish to build this project.
|
|
Complementary pair of logic-level Mosfets (CSD18534KCS/SPP15P10PL-H)
Pack of two logic level Mosfets. Includes one CSD18534KCS N-channel and one SPP15P10PL-H P-channel type.
These can be used to build the NiMH/Nicad Burp Battery Charger.
The critical parameters are:
CSD18534KCS: 60V, 73A (164A peak), 107W, 7.6mΩ @ 10V, 10.2mΩ @ 4.5V
SPP15P10PL-H: -100V, 15A (60A peak), 128W, 140mΩ @ 10V, 190mΩ @ 4.5V
|
|
IRS21850S High-Side Mosfet Driver
Mosfet driver as used in the Automatic Car Headlight Controller.
Please note that Jaycar are offering a full kit for this project, Cat No KC5524.
|
 |
SL32 10015 NTC thermistor
NTC thermistor, as used in the Soft Starter, Soft Starter for Power Tools and Induction Motor Speed Controller.
|
 |
Omron G5V-1 or Hongfa HFD23/005 SPDT signal relay
A small relay which can be used in the LF-HF Up-Converter and SiDRADIO projects.
|
 |
TCRT5000 Reflective Optical Sensor
Sensor used in the Automatic Points Controller. More than one may be required.
|
|
ISL9V5036P3-F085 360V, 46A IGBT for the High-Energy Electronic Ignition System
IGBT (TO-220) to suit the High-Energy Electronic Ignition.
This is a relatively difficult part to get so we are offering it for constructors of the High-Energy Electronic Ignition System or Jacob's Ladder projects.
|
 |
Pair of ZXCT1009 Current Shunt Monitor ICs for DCC Reverse Loop Controller project
Two ZXCT1009FTA Shunt Monitor ICs (SOT-23 package) for the DCC Reverse Loop Controller/Block Switch project. Provided in anti-static plastic tape.
|
 |
3-pin JST plug to bare wires cable, 100mm
3-pin JST cable to bare wires, to suit either of the Tenda MP3 player modules.
|
 |
RF Coil Former with Adjustable Ferrite Core
A coil former with ferrite slug. Can be used for the Planet Jupiter Receiver (three formers required).
This is similar to SBK-71K but without the shield can. The Jaycar LF1227 set originally specified is no longer available. There are a few differences so some slight modifications need to be made in order to fit the new coil former on the PCB:
1) This former has five pins rather than two. The extra pins can be cut off or, where they will fit into an existing PCB mounting hole, used as tap connection points.
2) This former is slightly smaller so you will need to use 0.25mm diameter ECW rather than the 0.3mm diameter specified in the SiDRADIO parts list. The number of turns remains the same.
3) You may need to bend the pins slightly to fit them into the PCB mounting pads.
|
 |
ESP32 Arduino-compatible ARM processor board with WiFi and Bluetooth
An ESP32 dual-core microcontroller board with WiFi and Bluetooth. It's similar to the ESP8266 but smaller, faster, with more I/Os, more advanced WiFi and also a Bluetooth transceiver. Can be programmed using the Arduino IDE.
Note that this module is not compatible with the ESP32-DevKitC used in two projects by Richard Palmer (the WiFi Bench Supply and WiFi DC Electronic Load). For those, use SC4447.
| Cat No SC6594. Price: AUD $20.00 1 |
|
Add to trolley (available until stock is exhausted) |
| In stock: yes (9 available). Estimated dispatch time: 1-3 days |
|
 |
Tiny 1.8A buck step-down regulator module (MINI-360)
A 15x9mm module which uses the MP2307DN synchronous stepdown regulator IC. Input is 4.75-23V, output is 1-17V at up to 1.8A continuous (3A peak).
Efficiency up to 95%, switching frequency 340kHz, ripple 30mV (no load). Dropout voltage is around 1V. Output voltage is adjusted using a tiny SMD trimpot. The input and output DC connections are made via pads in the corner of the PCB.
| Cat No SC4399. Price: AUD $2.00 1 |
|
Add to trolley |
| In stock: yes (14 available). Estimated dispatch time: 1-3 days |
|
|
Strip of ten bright YELLOW M3216/1206 SMD LEDs
Ten bright diffused yellow SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). 590-600nm, 50-100mCd @ 20mA, 120° viewing angle, Vf=2.2-2.8V @ 20mA.
|
|
One ultra-bright PURPLE/UV M3216/1206 SMD LED
One very bright purple/UV SMD LED in a 3216/1206 package (3.2 x 1.6mm). 390-410nm, 70-120mCd @ 20mA, Vf=3.0-3.6V @ 20mA.
|
 |
Strip of ten ultra-bright GREEN M2012/0805 SMD LEDs
Ten very bright diffused green SMD LEDs in a 2012/0805 package (2.0 x 1.2mm). 525-535nm, 400-500mCd @ 20mA, 120-140° viewing angle, Vf=3.2-3.4V @ 20mA.
|
|
Strip of ten ultra-bright YELLOW M2012/0805 SMD LEDs
Ten very bright diffused yellow SMD LEDs in a 2012/0805 package (2.0 x 1.2mm). 17-215UYC/S530-A2/TRB: 588-590nm, 130-160mCd @ 20mA, 130° viewing angle, Vf=2.1-2.3V @ 20mA.
|
|
Strip of ten ultra-bright AMBER M2012/0805 SMD LEDs
Ten very bright diffused amber SMD LEDs in a 2012/0805 package (2.0 x 1.2mm). 17-215/S2C-CP2R1B/3T: 602-605nm, 150-200mCd @ 20mA, 130° viewing angle, Vf=2.0-2.2V @ 20mA.
|
|
Strip of ten ultra-bright RED M2012/0805 SMD LEDs
Ten very bright diffused red SMD LEDs in a 2012/0805 package (2.0 x 1.2mm). 620-625nm, 100-130mCd @ 20mA, 120° viewing angle, Vf=2.0-2.2V @ 20mA.
|
|
Strip of ten ultra-bright BLUE M2012/0805 SMD LEDs
Ten very bright diffused blue SMD LEDs in a 2012/0805 package (2.0 x 1.2mm). 465-475nm, 200-250mCd @ 20mA, 120-140° viewing angle, Vf=3.2-3.4V @ 20mA.
|
|
Strip of ten high-brightness CYAN M2012/0805 SMD LEDs
Ten bright cyan SMD LEDs in a 2012/0805 package (2.0 x 1.2mm). 475-480nm, 72-90mCd @ 20mA, 2.8-3.6V @ 20mA.
| Cat No SC3516. Price: AUD $1.20 1 |
|
Add to trolley |
| In stock: yes (89 available). Estimated dispatch time: 3-10 days |
|
 |
Strip of ten high-brightness COOL WHITE 1W/100+ lumen 3528 SMD LEDs
Ten very efficient, cool white SMD LEDs in a 3528 package (3.5 x 2.8 x 0.6mm).
Part code: LATWT470RELZK
Manufacturer: LG
Dimensions: 3.5 x 2.8 x 0.6mm
Forward current: 400mA (650mA peak)
Maximum dissipation: 1460mW
Operating temperature: -30 to 90°C
Maximum junction temperature: 135°C
Forward voltage: 3.05-3.65V @ 250mA
Light output: 110-140lm @ 1W
Luminous intensity: 23.5Cd @ 250mA
Colour temperature: 7000-10000K
CRI: 0.8
Viewing angle: 120°
| Cat No SC3515. Price: AUD $3.00 1 |
|
Add to trolley |
| In stock: yes (78 available). Estimated dispatch time: 1-3 days |
|
 |
Pack of 10 high-brightness RGB LEDs, 3.5x2.7x1.9mm (SMD)
A set of ten devices, each with three bright LEDs in a single 3.5x2.7x1.9mm SMD package - blue, red & green LEDs with a common anode connection.
Part code: SX-3528-RGB
Dimensions: 3.5 x 2.7 x 1.9mm
Package type: PLCC-4 (SMD)
Wavelengths: 620-622nm (red), 520-523nm (green), 460-463nm (blue)
Maximum current: 20mA/LED
Forward voltage: 1.9-2.1V (red), 3.0-3.2V (green), 3.0-3.2V (blue)
Brightness: 120-150mCd (red), 200-300mCd (green), 70-95mCd (blue)

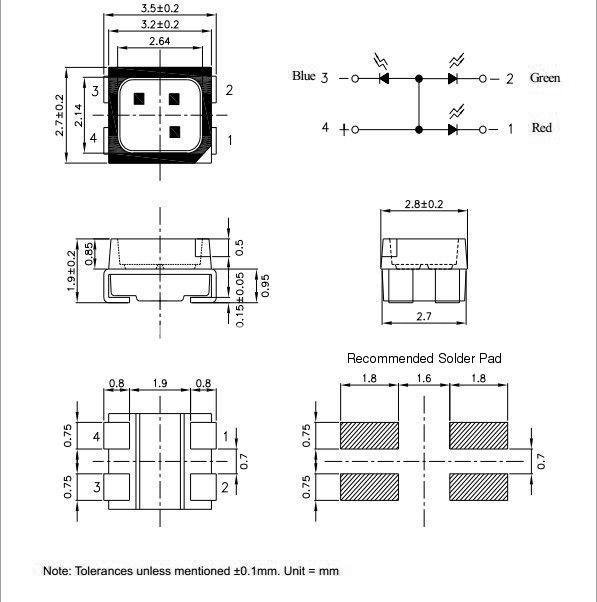

Pinout & footprint: http://www.siliconchip.com.au/Images/SX-3528-RGB.jpg
| Cat No SC3514. Price: AUD $0.80 1 |
|
Add to trolley |
| In stock: yes (178 available). Estimated dispatch time: 1-3 days |
|
 |
Pack of 10 high-brightness RGB LEDs, 5x5x1.5mm (SMD)
Three bright LEDs in a single 5x5x1.5mm SMD package - individual blue, red & green LEDs.
Part code: SX-5050-RGB
Dimensions: 5 x 5 x 1.5mm
Package type: PLCC-6 (SMD)
Wavelengths: 620-625nm (red), 520-530nm (green), 460-475nm (blue)
Maximum current: 60mA/LED
Forward voltage: 2.0-2.6V (red), 3.0-3.4V (green), 3.2-3.6V (blue)
Pinout & footprint: http://www.siliconchip.com.au/Images/SX-5050-RGB.jpg
| Cat No SC3513. Price: AUD $1.20 1 |
|
Add to trolley |
| In stock: yes (90 available). Estimated dispatch time: 1-3 days |
|
 |
5mm high efficiency diffused red LED
A 5mm red LED with high efficiency and good diffusion. Lights up to a reasonable brightness with just 1mA, with a forward voltage of around 1.8V. Leads are slightly shorter than usual at 16mm for the anode and 15mm for the cathode.
Our supplier claims 900-1200mCd @ 20mA, 250° viewing angle, 1.8-2.3V forward voltage and 620-640nm colour.
| Cat No SC3479. Price: AUD $0.10 1 |
|
Add to trolley |
| In stock: yes (863 available). Estimated dispatch time: 1-3 days |
|
 |
2-pin 2.0mm JST plug to bare wires cable, 100mm
2-pin JST cable to bare wires, with a 2mm pin pitch.
| Cat No SC4323. Price: AUD $1.00 1 |
|
Add to trolley |
| In stock: yes (74 available). Estimated dispatch time: 1-3 days |
|
 |
2-pin JST 2.0mm PCB header
A locking header which our Cat SC4323 cables can plug into.
| Cat No SC5656. Price: AUD $0.05 1 |
|
Add to trolley |
| In stock: yes (690 available). Estimated dispatch time: 1-3 days |
|
 |
Small 4A boost step-up regulator module (XL6009) - blue PCB version
A 40x21mm module which uses the XL6009 (LM2577 equivalent) boost regulator IC. Input is 3.2-32V, output is 4-38V at up to 4A continuous.
Efficiency up to 96%, switching frequency 400kHz. Output voltage is adjusted using a multi-turn trimpot. The input and output DC connections are made via pads in the corner of the PCB.
Note that as with a typical boost regulator, the output voltage can not be lower than the input voltage.
| Cat No SC4438. Price: AUD $4.00 1 |
|
Add to trolley (available until stock is exhausted) |
| In stock: yes (44 available). Estimated dispatch time: 1-3 days |
|
 |
Dual Horizontal PCB-mounting RCA sockets (white/red) [RCA-214]
Dual horizontal PCB-mounting RCA sockets (white/red) with an RCA-214 footprint.
This is not compatible with the RCA-210 footprint.
| Cat No SC4924. Price: AUD $1.00 1 |
|
Add to trolley (available until stock is exhausted) |
| In stock: yes (99 available). Estimated dispatch time: 1-3 days |
|
 |
TP5000-based 2A LiFePO4 cell charger module
A small (26 x 18mm) module capable of charging a single LiFePO4 or Li-ion/LiPo cell from a 4.5-9V DC supply. It's supplied with a red/green LED which indicates the charger status and has a small heatsink glued to the underside to help with heat dissipation.
By default, the module is set up for charging LiFePO4, with a 3.6V charge termination voltage. If you short the pair of empty pads near the BAT+ terminal then it will charge up to 4.2V, suitable for Li-ion and LiPo cells.
If fitting the supplied LED, the flat side of the lens goes towards the component labelled R1.
| Cat No SC5091. Price: AUD $6.00 1 |
|
Add to trolley (available until stock is exhausted) |
| In stock: yes (6 available). Estimated dispatch time: 1-3 days |
|
|
Strip of ten high-brightness WHITE M3216/1206 SMD LEDs
Ten bright white SMD LEDs in a 3216/1206 package (3.2 x 1.6mm). 5000-8000K, 200-300mCd @ 20mA, 3.0-3.6V @ 20mA.
| Cat No SC5203. Price: AUD $0.70 1 |
|
Add to trolley |
| In stock: yes (458 available). Estimated dispatch time: 1-3 days |
|
 |
GY-91 MPU9250 + BMP280 9DOF/Temperature/Pressure breakout board
A tiny breakout board with a BMP280 barometric pressure/altitude/temperature sensor plus an MPU9250 9DOF accelerometer/gyroscope/magnetometer module. Connects easily to an Arduino, Micromite, etc using the I²C bus via a 8-pin header.
| Cat No SC5488. Price: AUD $15.00 1 |
|
Add to trolley (available until stock is exhausted) |
| In stock: yes (2 available). Estimated dispatch time: 1-3 days |
|
 |
BZ-121 miniature GNSS receiver
A tiny (12x16mm) GPS/GLONASS/BDS/GALILEO receiver with a four-pin pluggable cable and the following specifications.
- Chip: u-blox M10050(Ten Generation Chip)
- GNSS systems supported: GPS, GLONASS, BDS, GALILEO, SBAS, QZSS (Default GPS+GLONASS+BDS joint positioning)
- Frequencies: GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
- Power supply: 5V DC
- Size: 12x16x4.5mm
- Interface: PCB pads or supplied 4-wire cable
- Weight: 2.2g
- Antenna: Ultrathin ceramic antenna (oil spraying process, prevent scratching and oxidation)
- Receiving channels: 72
- Baud rate: 115,200
- Output Protocol: NMEA or UBLOX (Dual protocol)
- Output Frequency: 1Hz-10Hz (default: 10Hz)
- Speed accuracy: 0.05m/s
- Horizontal Positioning Accuracy: 1.5m (open air)
- Receiving Sensitivity: Trace -162dBm / Capture -160dBm
Wire colours: red=5V, white=RX, yellow=TX, black=GND
| Cat No SC7414. Price: AUD $30.00 1 |
|
Add to trolley |
| In stock: yes (25 available). Estimated dispatch time: 1-3 days |
|
